COMPARE CORE LOSS

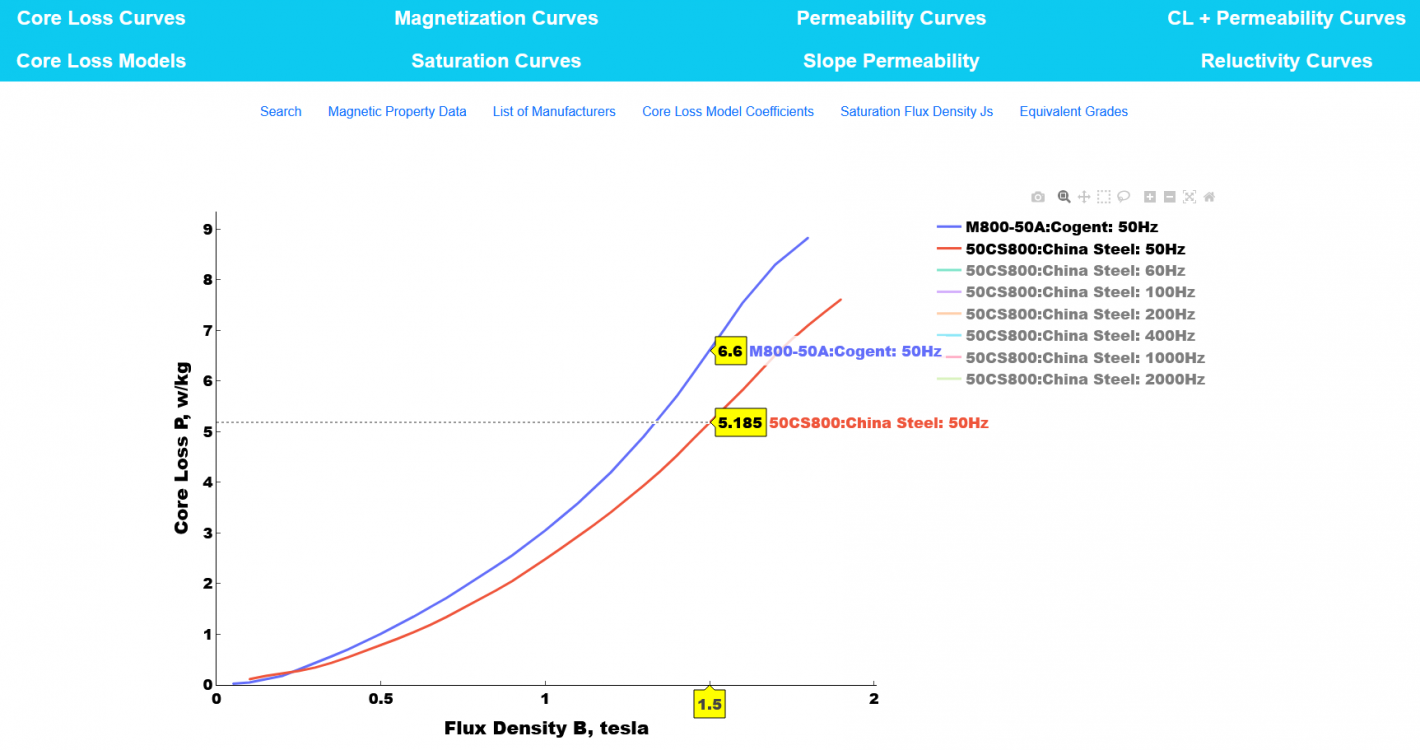

Your machine needs a grade that offers the lowest core loss. But all grades are not created equal! Your SMAG subscription allows you to visually compare the magnetic properties of diverse grades produced by various manufactures around the world. By moving the cursor, you can quickly judge whether the difference is large or small. For example, this picture shows that, at 1.5 T, 50Hz, ‘equivalent’ grades from different manufacturers dissipate 6.6 and 5.185 w/kg (27%).
SMAG visualizer can thus help you visually evaluate diverse grades and discover the manufacturer of the best grade. So selecting a significantly better grade using SMAG keeps your machine cooler.
COMPARE PERMEABILITY
Your machine needs a grade that offers the highest permeability. This screenshot from the SMAG visually compares the permeability curves of M310-50A grades from three different manufacturers. By moving the cursor you can find which grade is better at your design point.
It shows that the Nippon’a grade is best at 0.9T, while AK Steel’s grade is better at 0.7T. Choosing such a better grade reduces the current requirements of your machine. This visual quickly reveals that each grade is best at different flux densities.
SMAG Visualizer thus can quickly help you to discover the best grade that matches the flux density rating of your machine.
COMPARE MAGNETS
Your machine needs a magnet that is best at 100oC. But all magnets are not created equal!. This screenshot from PMAG visually compares N40UH type grades from three different manufacturers. It shows that one of them offers a higher demagnetizing field (-900 kA/m) than others. Choosing such a better grade protects your machine in the worst operating conditions. PMAG Visualizer can thus help you to quickly locate the manufacturer of the best magnets.
COMPARE MAGNETS’ ENERGY PRODUCT
Your machine needs magnets that store the highest energy at 100oC. This Screenshot from PMAG visually compares the energy product offered by magnets of the N38UH class produced by three different manufacturers.
It shows that one of them stores the highest energy of 32.73 MGOe. It is 10% higher than the others. Choosing such a better magnet can save the cost of magnets significantly. PMAG visualizer can thus help you to quickly discover the manufacturer of high-performance magnets at a lower cost.
All MagWeb’s visualizers are cloud-based and are available 24/7 from work, home, or anywhere. You can access them from a phone, laptop, tablet, or any computer. You do not need to download, install or license the software. MagWeb respects your privacy. It does not leave any cookies nor access any data on your computer.
